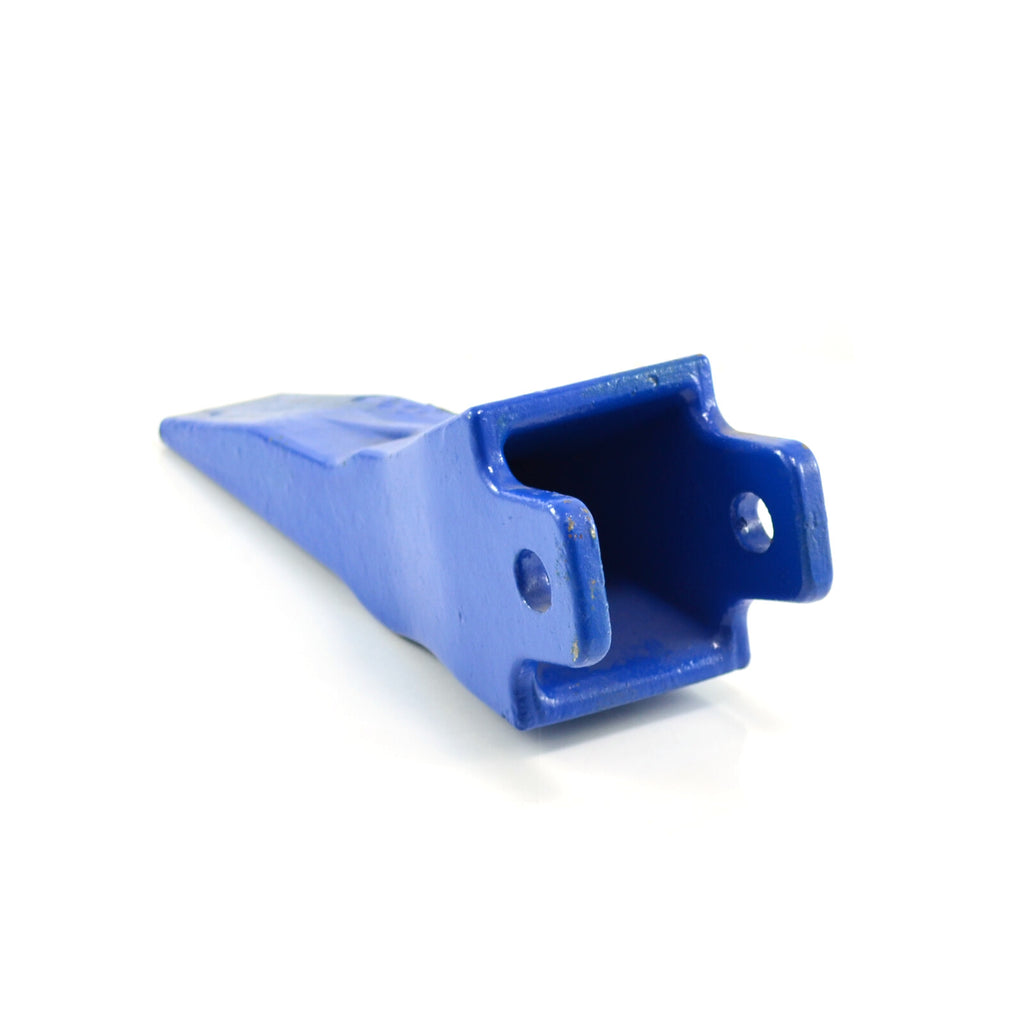

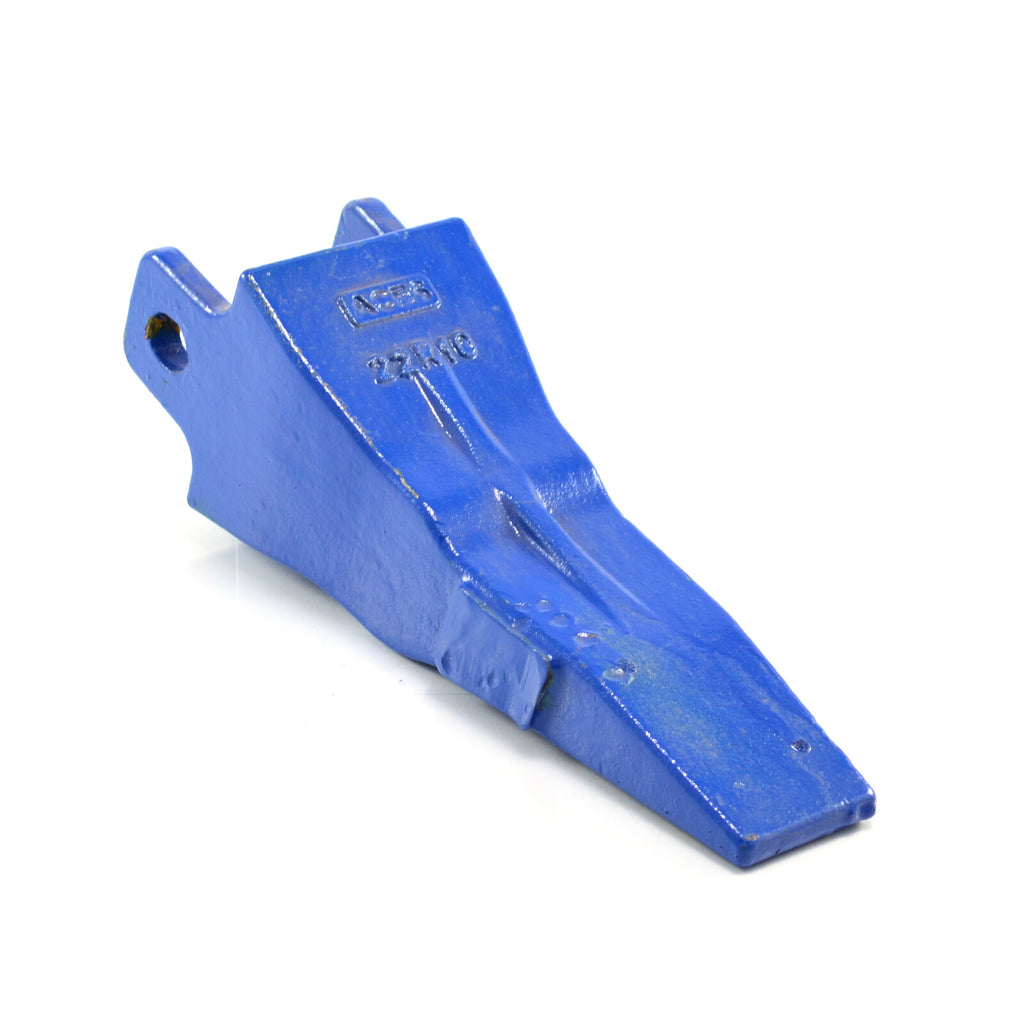

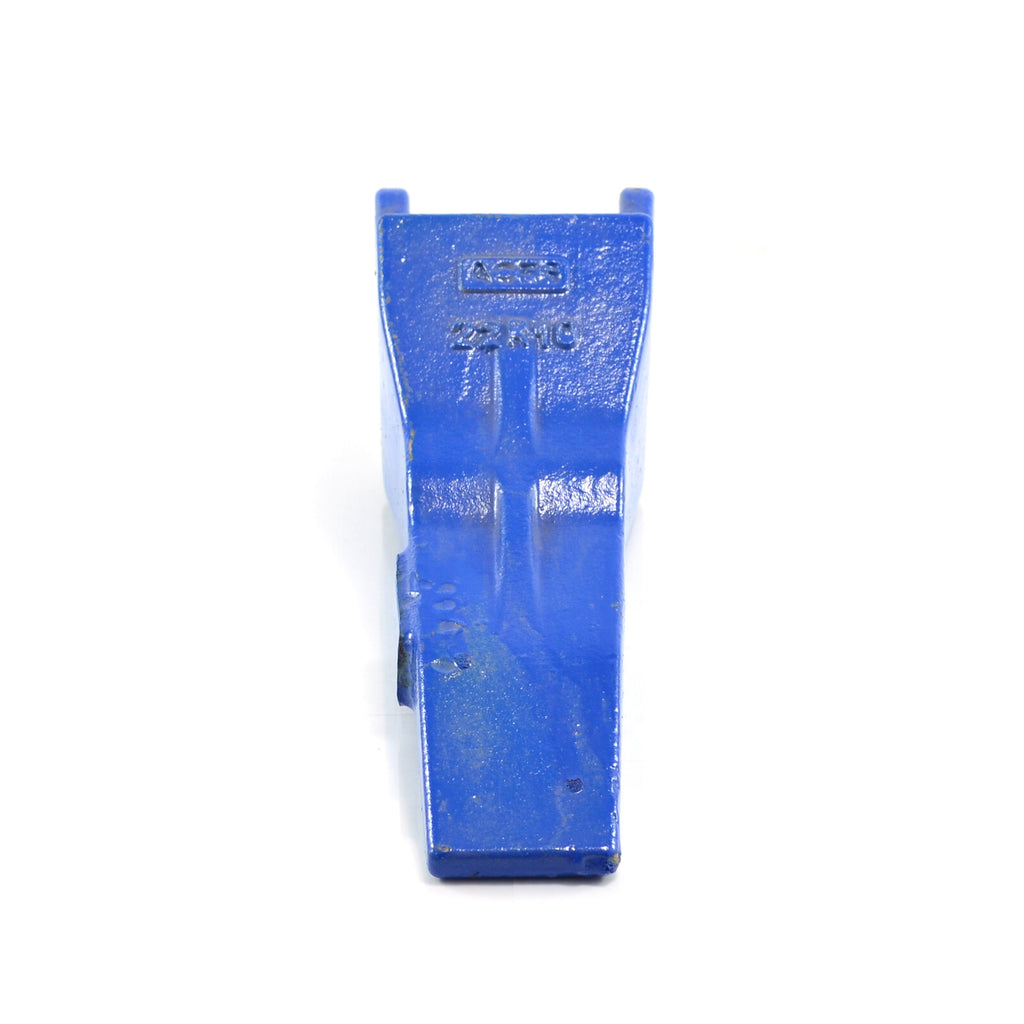

22R10 Ripper Tooth

Esco 22 Ripper Style Tooth

Esco 22 Ripper Style Teeth are common ripper teeth in Australia for excavators from 6 to 9 tonne. They are fitted with a round rubber lock inside the adapter and a round pin which is punched in horizontally from left to right. These will most likely be the teeth fitted If you have a mini excavator from 2 to 6 tonne with a Single-Point Ripper. These teeth are also interchangeable with Tooth & Shim Co. manufactured rippers.

Tooth & Shim Co. Teeth

Tooth & Shim Co. Teeth are manufactured to the highest quality standards available. All our teeth are manufactured using the Lost Wax Investment Casting process rather than the old fashioned sand casting process. This ensures higher tolerances on the teeth and adapters during casting. All teeth and adapters are made from high quality alloy steel to achieve an impact strength of greater than or equal to 20J. They are also hardened from 47-52 HRC for extremely long wear life.

Fitting Specifications:

Width: 60 mm
Height: 70 mm
Depth: 140 mm
